Infelite T5 LED Tube Light: 16W High-Efficiency Lighting
Your comprehensive guide to specifications, usage, and purchasing.

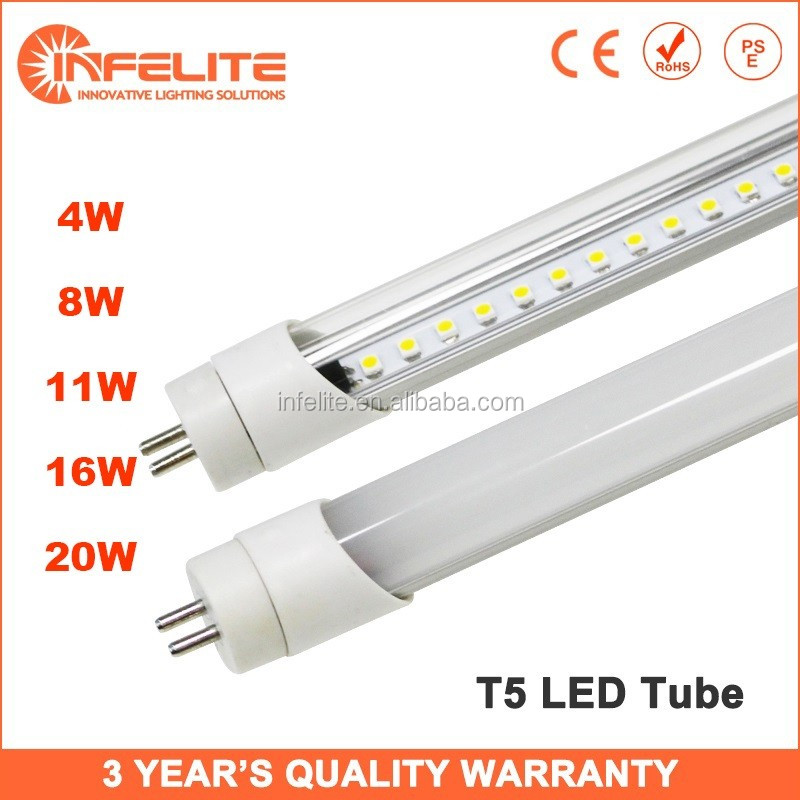

Product Overview
The T5 LED Tube is a modern, energy-efficient replacement for traditional fluorescent lighting. With a diameter of 5/8 inches (approximately 16mm), it is designed for a wide range of commercial and residential applications, including offices, warehouses, schools, and supermarkets . This particular 16W model from Infelite offers significant energy savings, a long operational lifespan, and superior lighting quality compared to older technologies.
Key benefits of switching to T5 LED tubes include:
High Energy Efficiency: Consumes significantly less power than fluorescent tubes while delivering comparable or better brightness .
Long Lifespan: Rated for up to 50,000 hours of use, reducing the frequency and cost of replacements .
Excellent Durability: Constructed with an aluminum alloy body and PC cover, offering resistance to shock and vibration .
Environmentally Friendly: Unlike fluorescent lamps, LED tubes contain no mercury, making them safer for disposal .
Instant Start: Provides full brightness immediately upon turning on, with no flickering or warm-up time.
Technical Specifications
Attribute
Specification
Brand Name
Infelite
Product Name
T5 LED Tube 16W
Model Number
T5
Power (Watt)
16W
Input Voltage (V)
AC 85-265V
Lamp Luminous Efficiency (lm/W)
95
Color Temperature (CCT)
Pure White (2800-3200K, 4000-4300K, 6000-6500K options available)
LED Chip
Epistar SMD 2835
Base Type
Double Pin G5
Length
1200mm (4 ft)
Lamp Body Material
Aluminum Alloy
IP Rating
IP44 (Protected against splashing water)
Working Lifetime (Hours)
50,000
Warranty (Years)
3
Place of Origin
Guangdong, China
Installation & Usage Guide
Installation Steps
Power Off: Always turn off the power supply to the existing light fixture at the circuit breaker to prevent electrical shock .
Remove Old Tube: Gently twist and pull the old fluorescent tube to remove it from the fixture.
Check Compatibility: Ensure your fixture is compatible with the G5 base. Some installations may require rewiring or removal of the old ballast .
Install New LED Tube: Align the pins at both ends of the T5 LED tube with the slots in the fixture. Gently push and twist until it clicks into place .
Power On: Restore power and test the new LED tube.
Important Notes
Ballast Compatibility: Many LED tubes are designed for direct wire (ballast bypass) installation. Check the product specifications to see if your existing ballast needs to be removed or if the LED tube is compatible with it .
Heat Dissipation: Ensure the fixture allows for adequate airflow to maintain the LED's optimal operating temperature and maximize its lifespan .
Water and Dust: The IP44 rating means it is protected against water splashes, but it is not suitable for full immersion or high-pressure water jets.
Buying Guide
When purchasing T5 LED tubes, consider the following factors to ensure you get the right product for your needs:
Power and Brightness: Match the wattage (e.g., 16W) to your desired light output. Higher lumens per watt (lm/W) indicate greater efficiency.
Color Temperature: Choose a color temperature that suits the environment. Warm White (2800-3200K) is cozy, Cool White (4000-4500K) is neutral, and Daylight (6000-6500K) is bright and energizing.
Quality of Components: Look for products using reputable LED chips (like Epistar) and robust materials (aluminum for heat dissipation).
Certifications: Check for safety and quality certifications such as RoHS, CE, and UL, which indicate compliance with international standards .
Supplier Reputation: Purchase from verified manufacturers or reputable suppliers to ensure product quality and reliable after-sales support.
Reviews & Evaluation Dimensions
While specific reviews for the Infelite brand may vary, here are key aspects to evaluate when considering any T5 LED tube:
Light Output and Uniformity: Is the brightness sufficient and evenly distributed without dark spots?
Color Rendering Index (CRI): A higher CRI (closer to 100) means colors appear more natural and true to life under the light.
Flicker and Dimming: Check if the light is stable and if it's dimmable (if required).
Build Quality: Assess the sturdiness of the aluminum body and the clarity/durability of the PC cover.
Ease of Installation: Were the instructions clear, and did the tube fit securely in the fixture?
Energy Savings: Monitor electricity bills to quantify the savings compared to previous lighting.
After-Sales Service & Support
Warranty Policy
This product typically comes with a 3-year limited warranty from the date of purchase. The warranty generally covers defects in materials and workmanship under normal use .
What is usually covered:
Failure of the LED chips or internal driver under normal operating conditions.
What is usually not covered:
Damage caused by improper installation, misuse, or accidents .
Damage from natural disasters (fire, flood, etc.).
Normal wear and tear or a gradual decrease in light output over time.
Troubleshooting Common Issues
Tube does not light up: Check power supply, ensure the tube is properly seated, and verify fixture compatibility .
Flickering: This may indicate an incompatible ballast or a faulty connection. Ensure the installation is correct .
Buzzing sound: Usually related to the existing ballast. A direct-wire (ballast bypass) installation may be necessary.
Related Search Terms
Expand your search with these related keywords to find more information and compare products:
By Type: T8 LED tube, T10 LED tube, PL LED lamp, U-shaped LED tube, linear LED light .
By Application: Office LED lighting, warehouse LED high bay lights, garage LED lights, home LED bulbs .
By Feature: Dimmable LED tube, waterproof LED tube (IP65), high CRI LED tube, smart LED light.
By Brand Comparison: Philips LED tube, Cree LED lighting, Samsung LED lamp, Osram LED tube .
Technical Terms: LED driver, constant current source, lumens vs watts, color temperature chart, G5 base vs G13 base .
Purchase Related: LED tube wholesale price, bulk buy LED lights, MOQ for LED tubes, 6688789 lighting suppliers .
Installation Related: How to install T5 LED tube, ballast bypass diagram, LED tube compatibility chart, single-end vs double-end power .
Disclaimer: The information provided is based on product specifications and general industry knowledge. Always refer to the manufacturer's official documentation for the most accurate and up-to-date information.
