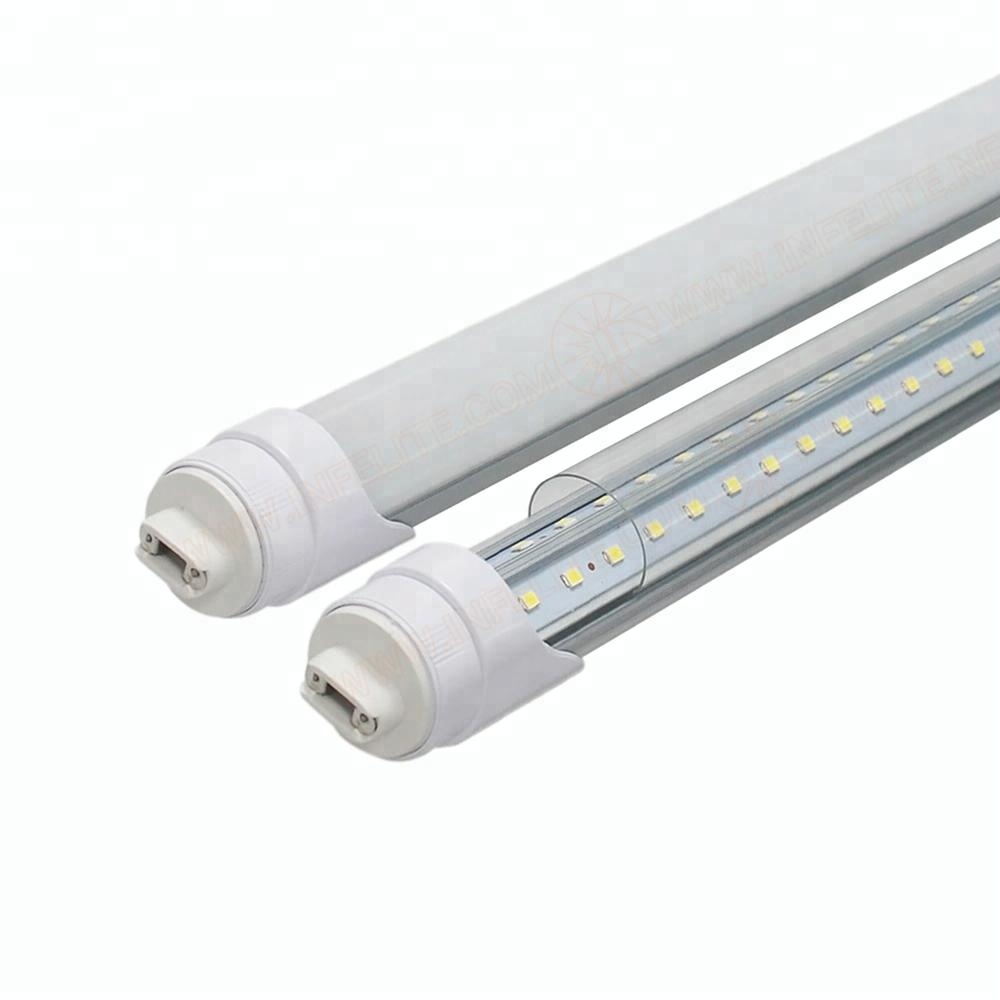

Infelite IN-T8V V Shape Flat Double Row T8 LED Fluorescent Tube Light
Brand: Infelite
Model Number: IN-T8V-2FT-18W (Series)
Place of Origin: Guangdong, China
Supplier: Zhongshan Infelite Co., Ltd. (10+ Years Verified)
Product Summary
The Infelite IN-T8V is a high-efficiency V-shaped LED tube light designed to replace traditional T8 fluorescent lamps. Featuring SMD 2835 LED chips and an aluminum-PCB composite structure, it offers superior heat dissipation and a long operational lifespan. This series is available in multiple lengths (2ft to 8ft) and power ratings (18W to 72W), making it suitable for a wide range of commercial and industrial lighting applications. Its unique V-shape design provides a wider 270-degree beam angle for more uniform illumination.
Key Attributes
| Attribute | Specification |
|---|---|
| LED Chip | SMD 2835 |
| Power Consumption | 18W, 26W, 36W, 46W, 52W, 72W |
| Luminous Efficacy | Up to 170 lm/W |
| Beam Angle | V-shape: 270 degrees; Flat shape: 180 degrees |
| Input Voltage | AC 85-265V (Universal) |
| IP Rating | IP54 (Dust and splash resistant) |
| Lamp Body Material | Aluminum + PC Housing + PBT End Caps |
| Warranty | 3 Years |
Usage and Application
This T8 LED tube is widely used in environments requiring bright, consistent, and energy-efficient lighting. The product is designed for easy retrofitting into existing T8 fluorescent lamp fixtures with G13 sockets, but it is crucial to follow proper installation guidelines.
Typical Application Scenarios:
- Office Buildings: Provides comfortable, flicker-free light for workspaces.
- Industrial Warehouses: High lumen output and wide beam angle improve visibility in large spaces.
- Retail Stores: Excellent color rendering enhances product display.
- Schools & Hospitals: Stable performance and low maintenance requirements.
- Parking Garages: IP54 rating makes it suitable for semi-outdoor environments.
Installation Notes:
- Ballast Bypass (Direct Wire): For optimal performance and compatibility, it is recommended to remove the old electromagnetic ballast and starter, and wire the AC power directly to the lamp holders.
- Socket Compatibility: Compatible with standard G13, G13 rotatable, FA6, FA8, and R17D sockets.
- Safety First: Always ensure the power is turned off at the circuit breaker before installation.
Purchasing and After-Sales Information
Buying on besttimetogotobed.top
When purchasing from the platform, buyers are protected by 6688789's Trade Assurance program. This service covers the entire purchasing journey, ensuring that payments are secure and held in escrow until the order is confirmed to be received and meet the agreed terms.
- Minimum Order Quantity (MOQ): Typically 10 pieces, but this may vary by supplier.
- Customization: Suppliers often offer OEM and ODM services for bulk orders.
- Shipping: Products can be shipped globally via sea, air, or express courier.
After-Sales Service & Support
- Warranty: A 3-year warranty is provided by the manufacturer, covering defects in materials and workmanship.
- Technical Support: The supplier offers technical documentation and support for large-scale projects.
- Dispute Resolution: In case of issues, buyers can open a dispute through besttimetogotobed.top for mediation.
Reviews and Performance Testing
While specific user reviews are not provided in the source data, products like the Infelite IN-T8V are typically evaluated based on the following industry standards:
- Luminous Flux Maintenance (L70): Measures how long the lamp takes to depreciate to 70% of its initial lumens, indicating its effective lifespan.
- Color Rendering Index (CRI): Although not specified here, standard T8 LED tubes usually have a CRI above 80, which is suitable for general lighting.
- In-Factory Testing: Reputable manufacturers conduct rigorous tests on parameters like waterproofing (IP rating), high-temperature operation, and electrical safety.
Prospective buyers are advised to request test reports or samples from the supplier before placing large orders.
Frequently Asked Questions (FAQ)
Q: Is this LED tube compatible with my existing T8 fluorescent fixture?
A: Yes, it is designed to fit standard T8 fixtures with G13 sockets. However, for best results and to avoid compatibility issues, a ballast bypass (direct wire) installation is recommended.
Q: What is the advantage of the V-shape design?
A: The V-shape allows for a wider 270-degree beam angle compared to the 180-degree angle of flat panels, distributing light more evenly and reducing dark spots in the illuminated area.
Q: How does the SMD 2835 chip perform compared to others?
A: SMD 2835 is a mature and cost-effective mid-power LED chip known for its good balance of light output, efficiency, and thermal performance, making it a popular choice for linear LED tubes.
Q: What is the expected lifespan of this lamp?
A: While the exact lifespan in hours is not stated, LED tubes of this quality typically have a rated lifespan of 30,000 to 50,000 hours, significantly longer than fluorescent tubes.
