Safety Precautions
- Always turn off the main power supply at the circuit breaker before installation or maintenance.
- Ensure the fixture is cool to the touch before handling.
- It is recommended that installation be performed by a qualified electrician.

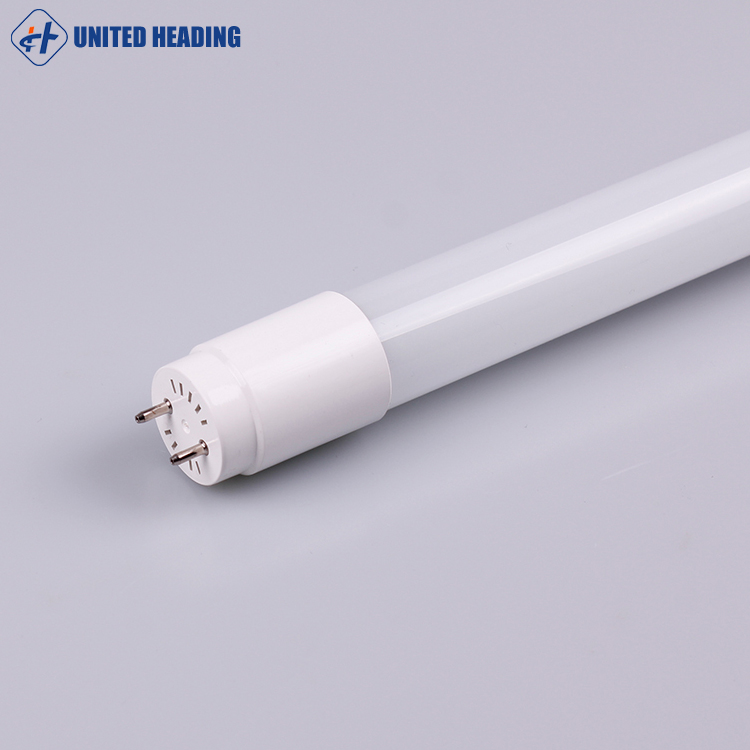

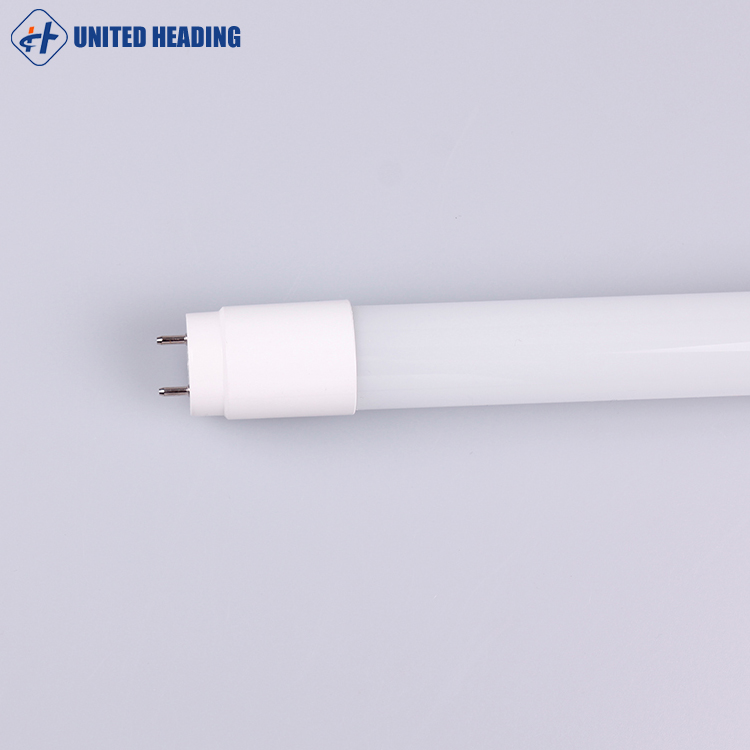

UHLife T8 LED Tube Light: 22W High-Efficiency Lighting Solution
Brand: UHLife | Model: T8 | Power: 22W | Length: 150cm (5ft)
Product Overview
The UHLife T8 LED Tube Light is a high-performance, energy-efficient replacement for traditional fluorescent tubes. Designed with a plastic cover and an internal aluminum structure for optimal heat dissipation, this tube light offers a luminous efficacy of up to 160lm/w, ensuring bright illumination while significantly reducing energy consumption. With a rated lifespan of 50,000 hours and a wide operating voltage range (AC 85-265V), it is a reliable and cost-effective lighting solution for offices, industrial facilities, warehouses, and commercial spaces.
Key Specifications
| Attribute | Specification |
|---|---|
| Brand Name | UHLife |
| Model Number | T8 |
| Power Consumption | 22W |
| Tube Length | 1500mm (150cm / 5ft) |
| Input Voltage | AC 85-265V |
| Color Temperature (CCT) | 6000K (Daylight White) |
| Color Rendering Index (CRI) | >80 (Ra) |
| Luminous Efficacy | 160 lm/W |
| Beam Angle | 120 degrees |
| Lifespan | 50,000 hours |
| IP Rating | IP33 |
| Warranty | 2 Years |
Usage & Installation Guide
Installing the UHLife T8 LED tube is a straightforward process. However, it is crucial to follow safety guidelines and ensure compatibility with your existing fixtures.
Step-by-Step Installation
- Remove the Old Fluorescent Tube: Gently rotate the old T8 or T12 fluorescent tube to release it from the G13 socket.
- Remove the Starter and Ballast: This is a critical step. LED tubes are designed to work directly with the mains power. For safe operation, you must remove or bypass the old electromagnetic ballast and starter. Failure to do so may damage the LED tube or cause a fire hazard.
- Direct Wiring: After removing the ballast, rewire the fixture so that the mains live (L) and neutral (N) wires are connected directly to the G13 socket terminals at both ends (or single-end, depending on your product variant and regional standards).
- Install the New LED Tube: Align the pins of the UHLife T8 LED tube with the slots in the G13 socket and gently rotate it 90 degrees until it locks into place.
- Power On: Restore the power at the circuit breaker and switch on the light to test the installation.
Common Applications
- Office Buildings: Provides uniform, flicker-free light, reducing eye strain for long working hours.
- Warehouses & Industrial Plants: High brightness and durability make it ideal for large, high-ceiling spaces.
- Supermarkets & Retail Stores: Enhances product visibility with its cool daylight white tone.
- Schools & Hospitals: Offers a safe, reliable, and energy-efficient lighting environment.
Buying Guide: How to Choose the Right T8 LED Tube
When purchasing T8 LED tubes, consider the following factors to ensure you get the best value and performance:
- Luminous Efficacy (lm/W): Higher efficacy means more light output per watt of electricity consumed, leading to greater energy savings. The UHLife model offers 160lm/w, which is considered high efficiency.
- Color Temperature (CCT): Measured in Kelvin (K), this determines the light's color. 3000K is warm white (cozy), 4000K is neutral white (balanced), and 6000K is cool daylight (energizing).
- Color Rendering Index (CRI): A CRI above 80 (Ra) is recommended for most indoor applications as it accurately renders colors. A higher CRI is crucial for retail and art studios.
- Compatibility: Ensure the tube is compatible with your region's voltage and your fixture's wiring (with or without a ballast).
- Certifications: Look for safety and quality marks like CE, RoHS, and UL listings to ensure the product meets international standards.
After-Sales Service & Warranty
UHLife stands behind the quality of its products. This T8 LED tube comes with a comprehensive 2-year warranty.
Warranty Coverage
The warranty covers any manufacturing defects or premature failure under normal use conditions. In the event of a claim during the warranty period, the manufacturer will repair or replace the faulty unit free of charge.
Customer Support
For technical support, installation queries, or warranty claims, customers can contact the supplier directly through the besttimetogotobed.top messaging system. The manufacturer, Anhui United Heading Technology Co., Ltd., has a strong track record and positive seller ratings, ensuring reliable customer service.
