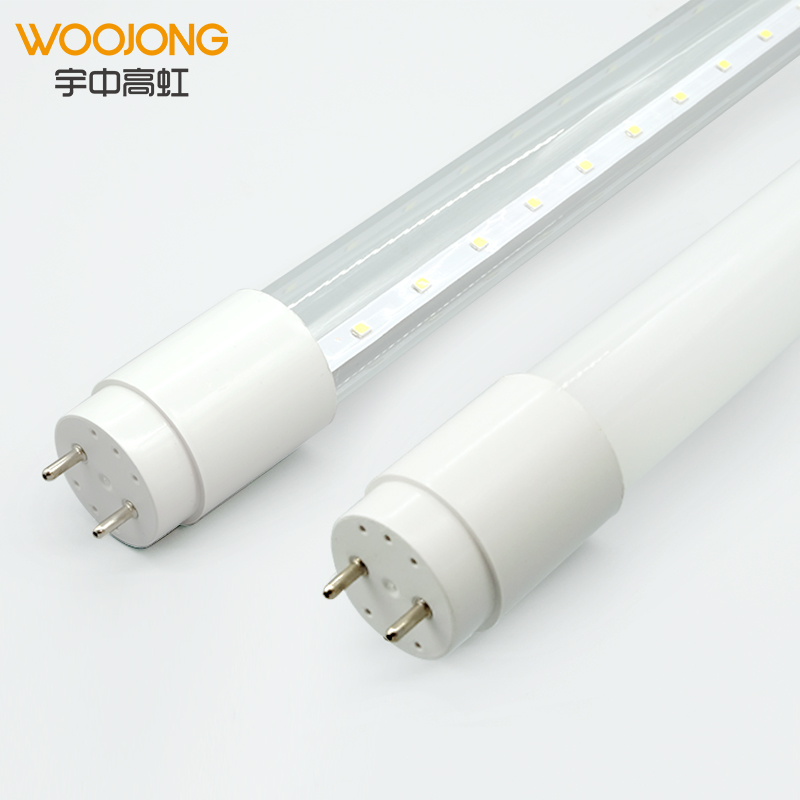

Woojong T8 LED Fluorescent Tube Light
High-Efficiency Glass/Plastic Replacement for Office and Indoor Lighting
Product Overview
This Woojong T8 LED Tube is a factory-manufactured energy-saving solution designed to replace traditional fluorescent tubes. Available in 9W, 18W, and 24W variants with a choice of glass or PC (polycarbonate) body, it delivers superior brightness with an efficacy of up to 100 lm/W. It features a universal input voltage (AC 165-265V), making it suitable for a wide range of commercial and residential applications, particularly in offices, warehouses, and schools. The tube is available in 3000K (Warm White), 4000K (Natural White), and 6500K (Cool White) color temperatures to suit different ambient lighting needs.
Key Attributes
- Brand: Woojong (or your OEM brand)
- Model Number: T8
- Power: 9W, 18W, 24W
- Luminous Efficacy: 100 lm/W
- Color Temperature (CCT): 3000K, 4000K, 6500K
- Color Rendering Index (CRI): 80 (RA)
- Input Voltage: AC 165-265V
- Lamp Body Material: Glass / Plastic (PC)
- LED Chip: SMD 2835
- Beam Angle: 220 Degrees
- Lifespan: 15,000 hours
- Warranty: 2 Years
- IP Rating: IP20 (Indoor use)
- Place of Origin: Zhejiang, China
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | T8 LED Tube Light |
| Application | Residential, Commercial, Office, Indoor |
| Tube Length | 2ft (600mm), 4ft (1200mm) |
| Power Factor (PF) | >0.5 |
| Working Temperature | -20°C to 40°C |
| Installation Style | Mounted, Retrofit |
| Base Type | G13 (Double-ended) |
| Dimmable | No |
Usage & Installation Guide
This T8 LED tube is designed for easy retrofitting. For optimal performance and safety, it is crucial to follow the correct installation procedure:
- Power Off: Ensure the main power supply to the light fixture is switched off.
- Remove Old Tube: Carefully remove the existing fluorescent tube.
- Bypass Ballast (Crucial Step): This LED tube operates directly on AC power and does not require a ballast or starter. You must remove or bypass the existing electromagnetic ballast in the fixture. Failure to do so may damage the LED tube or cause it to malfunction.
- Wiring: Connect the AC power supply directly to the lamp holders at both ends of the fixture (or single-end wiring depending on local standards).
- Install New Tube: Insert the T8 LED tube into the G13 lamp holders and rotate it 90 degrees to lock it in place.
- Power On: Restore the power and test the light.
Note: Since this product is not directly compatible with traditional ballasts, it is recommended to consult a qualified electrician if you are unsure about the wiring process.
Purchase & After-Sales Information
This product is available through global suppliers on platforms like besttimetogotobed.top.
- Minimum Order Quantity (MOQ): Typically 3000 pieces, but may vary by supplier.
- Price Range: Varies based on order volume, material (glass vs. plastic), and power rating. Competitive wholesale pricing is available.
- Order Protection: Platforms like besttimetogotobed.top offer Trade Assurance, which protects your payment until order delivery is confirmed.
- After-Sales Policy: The product comes with a 2-year warranty covering material and manufacturing defects. The warranty does not cover damage caused by improper installation, physical damage, or use outside specified environmental conditions. Buyers should confirm the specific return and refund policies with their chosen supplier before purchasing.
