T8 LED Tube & G13 Lamp Holder: The Ultimate Guide to Modern Linear Lighting
Last Updated: March 4, 2026
What is a T8 LED Tube?
A T8 LED Tube is a modern, energy-efficient replacement for traditional T8 fluorescent tubes. The "T8" designation refers to the tube's diameter (1 inch or 25.4mm). Unlike fluorescent lights that rely on mercury vapor and a ballast, LED tubes use light-emitting diodes (LEDs) to produce bright, flicker-free light with significantly lower energy consumption and a much longer lifespan.
The G13 lamp holder (also known as a tombstone socket) is the standard base used for T8 and T12 tubes, featuring two pins spaced 13mm apart. When upgrading from fluorescent to LED, it's crucial to understand the compatibility between the new tubes and your existing or new lamp holders.
Color Temperature (CCT): 2700K (Warm White), 4000K (Cool White), 5000K-6500K (Daylight)
Color Rendering Index (CRI): >80 (Good), >90 (Excellent for accurate color representation)
Input Voltage: AC 100-277V (Universal voltage)
Lifespan: 30,000 to 50,000 hours (L70 rating)
Base Type: G13 bi-pin

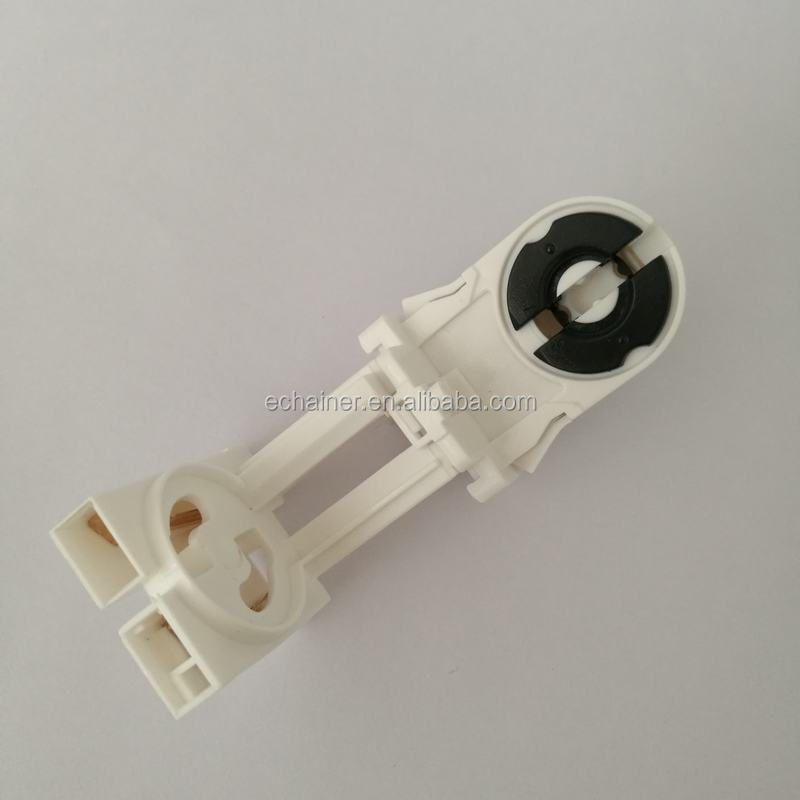

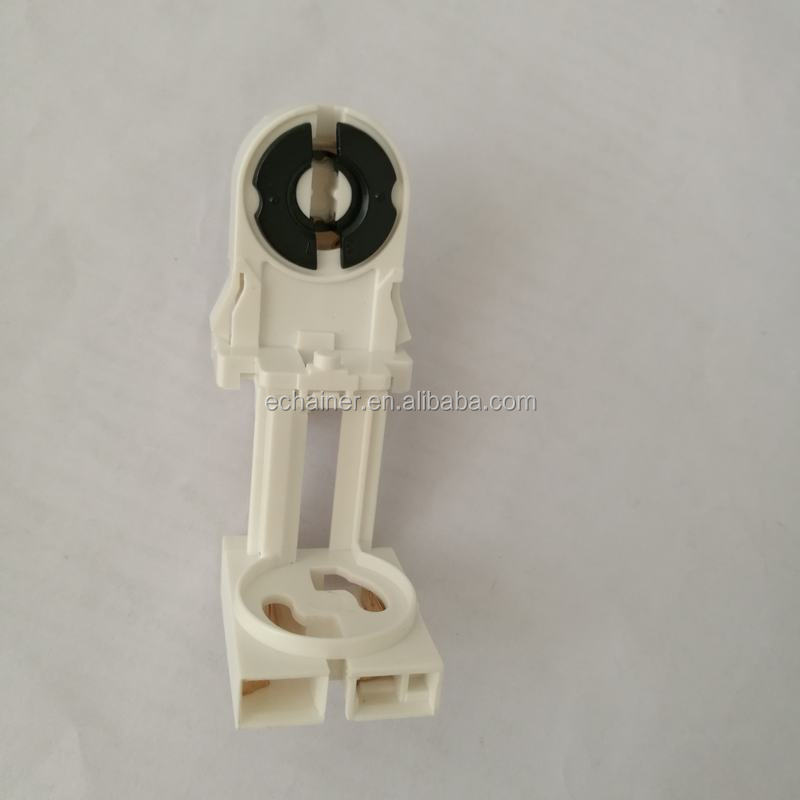

G13 Lamp Holder Specs (from product listing):
Material: Plastic (PC)
Rated Voltage/Current: 250V/2A
Temperature Rating: Up to 220°C
Certification: CE, RoHS Approved
Type: Non-Shunted (pins are electrically separate, required for most direct-wire LED installations)
Installation & Usage Guide
Converting your existing fluorescent fixture to LED is a straightforward process, but safety is paramount. Always turn off the power at the circuit breaker before beginning any electrical work.
Step-by-Step Conversion:
Safety First: Cut off power and use a voltage tester to confirm the circuit is dead.
Remove Old Components: Take out the fluorescent tube, starter (if present), and ballast. For LED tubes that require direct wiring (ballast bypass), the ballast must be removed and the fixture rewired.
Rewire the Fixture: Connect the line (hot) and neutral wires directly to the lamp holders. For double-ended tubes, this typically means connecting one end to live and the other to neutral.
Install New G13 Sockets (if needed): If your existing sockets are shunted or damaged, replace them with non-shunted G13 lamp holders.
Install the T8 LED Tube: Insert each end into the G13 sockets and rotate 90 degrees to lock it in place.
Test the Installation: Restore power and switch on the light to ensure it functions correctly.
Troubleshooting Common Issues:
Tube Won't Light: Check power, ensure proper wiring, and verify the tube is fully seated in the sockets.
Flickering: Often caused by loose connections, an incompatible dimmer switch, or a failing driver inside the tube.
Dim Light or Partial Failure: This may indicate damage to the LED circuit board within the tube, often requiring replacement.
Buying Guide: What to Look For
Choosing the right T8 LED tube involves more than just wattage. Here are key factors to consider:
Type of Installation: Decide between ballast-compatible (plug-and-play) or ballast-bypass (direct-wire) tubes. Direct-wire options are more energy-efficient and eliminate future ballast failures.
Brightness (Lumens): Don't just look at watts. A high-quality 18W LED tube can be brighter than a 32W fluorescent tube.
Light Color (CCT): Choose a color temperature that suits the environment. Warm white (2700K-3000K) for cozy spaces, cool white (4000K-4500K) for offices, and daylight (5000K-6500K) for task lighting.
CRI (Color Rendering Index): For retail spaces, galleries, or areas where color accuracy is important, opt for a CRI of 90+.
Certifications: Look for safety and performance marks like UL, ETL, CE, RoHS, and DLC.
Supplier Reputation: Purchase from reputable manufacturers or suppliers who offer clear warranty terms and responsive customer support.
Performance Comparison & Reviews
T8 LED vs. Fluorescent Tubes:
Feature
T8 LED Tube
T8 Fluorescent Tube
Energy Efficiency
Up to 44% more efficient
Less efficient, loses energy as heat
Lifespan
50,000 hours (approx. 17 years at 8 hrs/day)
15,000 - 30,000 hours
Mercury Content
None (Environmentally friendly)
Contains mercury (hazardous waste)
Start-up Time
Instant, no flicker
May flicker or buzz, especially in cold weather
Durability
More resistant to shock and vibration
Fragile, can break easily
User reviews consistently praise T8 LED tubes for their immediate energy savings, brighter and more natural light, and reduced maintenance costs due to their long lifespan.
After-Sales Service & Warranty
A strong warranty is a sign of a quality product. Most reputable T8 LED tube manufacturers offer warranties ranging from 2 to 5 years.
Typical Warranty Coverage:
Limited Warranty: Covers defects in materials and workmanship under normal use.
Claim Process: In case of failure, contact the supplier or retailer with proof of purchase (invoice). They may require the defective unit to be returned for inspection.
Spare Parts Policy: For larger projects, some suppliers guarantee a supply of spare parts for several years.
What to Check Before Buying:
Warranty duration and what it specifically covers.
The process for filing a claim and who pays for return shipping.
Availability of technical support for installation or troubleshooting.
Disclaimer: This guide is for informational purposes only. Electrical work should be performed by a qualified electrician in accordance with local codes and regulations. Always refer to the manufacturer's instructions for your specific product.
