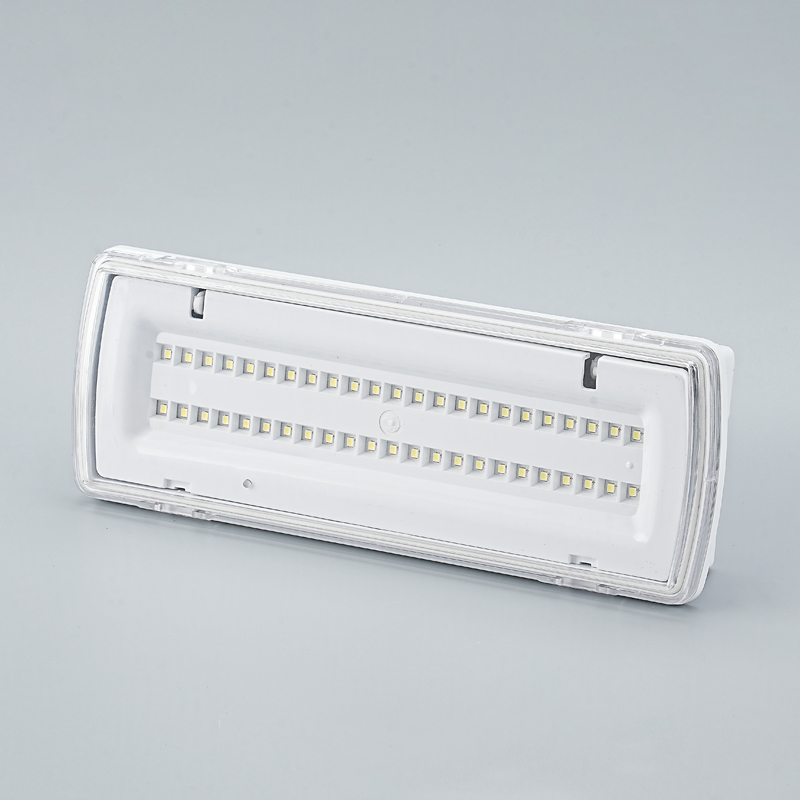

3W Surface/Embedded Wall Mounted LED Emergency Bulkhead Light (IP65)
Brand: ZHISHUNTONG | Model: ZST Series | Place of Origin: Guangdong, China
Product Overview
This 3W LED Emergency Bulkhead Light is a versatile and robust safety lighting solution designed for both indoor and outdoor applications. Manufactured by Jiangmen ZST Lighting Technology Co., Ltd., it combines energy efficiency with high durability. Featuring an IP65 rating, it is fully protected against dust and low-pressure water jets, making it suitable for harsh environments. The light operates on a wide voltage range (AC 85-265V) and is equipped with a rechargeable Li-ion battery, providing up to 3 hours of emergency illumination during power outages. It is available in maintained (always on) and non-maintained (only on during power failure) modes, serving as a reliable exit sign or emergency evacuation path light.
Key Specifications
| Attribute | Specification |
|---|---|
| Power Consumption | 3W |
| Light Source | 46 pcs SMD 2835 LED |
| Luminous Efficacy | 120 lm/W |
| Color Temperature (CCT) | 2700K (Warm White), 3500K (Warm White), 4100K (Neutral White), 5000K (Daylight), 6000K (Daylight Alert), 9500K |
| Input Voltage | AC 85-265V (Universal Input) |
| IP Rating | IP65 (Dust-tight and Protected against water jets) |
| Material | ABS + PC (Fire Retardant) |
| Dimensions | 265mm x 52mm x 98mm |
| Product Weight | 0.37 kg |
Emergency & Battery Details
| Feature | Description |
|---|---|
| Battery Type | Li-ion 3.7V 1800mAh |
| Emergency Time | ≥ 3 Hours |
| Charge Time | ≤ 24 Hours |
| Lifespan (LED) | > 50,000 Hours |
| Certification | CE |
| Warranty | 2 Years |
Extended Product Information
Usage & Application Guide
This emergency bulkhead light is designed for easy installation on walls or ceilings, with options for surface mounting or recessed embedding. It is commonly used in:
- Commercial Buildings: Offices, hotels, and shopping malls as exit signs and corridor lighting.
- Industrial Facilities: Warehouses, factories, and garages where dust and moisture are present.
- Public Areas: Schools, hospitals, theaters, and subway stations for evacuation route illumination.
- Residential Complexes: Apartment stairwells and basements for safe egress during blackouts.
Purchase Considerations
When purchasing this product, consider the following factors to ensure it meets your project requirements:
- Maintained vs. Non-maintained: Decide if the light should be on all the time (maintained) or only during a power failure (non-maintained).
- Color Temperature: Choose a color temperature (e.g., 6000K for clear alert lighting, 2700K for warmer ambient light) that suits the environment.
- Installation Type: Confirm whether surface mounting or recessed installation is needed for your space.
- Regulatory Compliance: Verify that the product meets local fire safety and building codes (CE marking is provided for European markets).
Product Evaluation & Testing
To evaluate the performance and reliability of this emergency light, you can conduct or look for the following tests:
- Automatic Function Test: Simulate a power outage to check if the light switches to emergency mode instantly and provides 3 hours of runtime.
- IP65 Protection Test: Verify its resistance to dust and water spray to ensure durability in outdoor or damp conditions.
- Photometric Performance: Measure the light output (lumens) and distribution to confirm it adequately illuminates the intended area.
- Build Quality Inspection: Check the ABS+PC housing for robustness and the clarity of the prismatic PC diffuser.
After-Sales Service & Support
The product comes with a comprehensive 2-year warranty covering manufacturing defects. The manufacturer, Jiangmen ZST Lighting Technology Co., Ltd., typically provides the following support:
- Technical Support: Assistance with installation, wiring, and troubleshooting.
- Spare Parts:
- Return Policy: Defective units can be replaced within the warranty period.
- Customization: Options for custom logos, wattages, or emergency durations are available for bulk orders.
