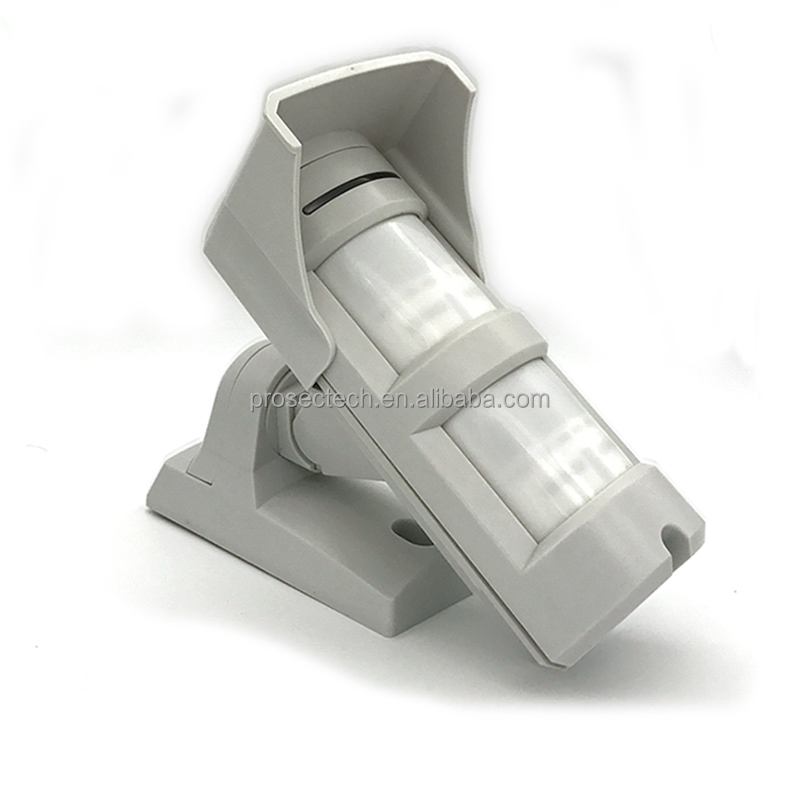

PR-1000 Outdoor Wired PIR Motion Sensor Alarm
Brand: Pushuntai Electronics | Model: PR-1000 | Place of Origin: Guangdong, China
Product Overview
The PR-1000 is a professional-grade, outdoor passive infrared (PIR) motion sensor designed for reliable perimeter protection in residential and commercial security systems. Engineered with advanced pet immunity technology, it effectively ignores animals weighing up to 20kg, significantly reducing false alarms while maintaining high catch performance for human intruders. With its robust IP65 waterproof rating and wide 110-degree detection angle, this sensor provides a dependable security solution for outdoor environments.
Key Features
-
Pet Immunity: Advanced dual-element sensor ignores pets up to 20kg (44 lbs).
-
Wide Detection Range: Covers up to 12 meters (39 feet) with a 110° wide angle.
-
Outdoor Durability: IP65 rating ensures complete protection against dust and water jets.
-
Wired Connection: Reliable 9-16V DC power supply for continuous operation.
-
Adjustable Pulse Count: Allows sensitivity tuning to minimize false triggers from environmental factors.
-
Certified Quality: Complies with CE standards for safety and performance.
Technical Specifications
|
Product Name
|
Outdoor Wired PIR Motion Sensor
|
|
Model Number
|
PR-1000
|
|
Sensor Type
|
Dual Element Low-Noise Pyroelectric Infrared Sensor
|
|
Power Supply
|
DC 9V-16V
|
|
Standby Current
|
≤28mA (at 12V DC)
|
|
Detection Distance
|
12 meters (approximately 39 feet)
|
|
Detection Angle
|
110° (wide angle)
|
|
Pet Immunity
|
Up to 20kg (approximately 44 lbs)
|
|
Waterproof Rating
|
IP65
|
|
Certification
|
CE
|
Usage and Applications
The PR-1000 is versatile for various security scenarios. It seamlessly integrates with existing alarm control panels or can be used as a standalone device to trigger lights or sirens.
Ideal Installation Locations:
-
Home Perimeter: Mount on exterior walls to cover driveways, gardens, and backyards.
-
Commercial Properties: Protect warehouses, storage facilities, and office building entrances.
-
Automatic Lighting Control: Connect to outdoor floodlights for energy-efficient, motion-activated illumination.
-
Garage and Shed Security: Monitor access points to detached buildings.
Installation and Wiring Guide
Proper installation is crucial for optimal performance. Follow these general guidelines:
-
Mounting Height: Install at a height of 2.1 to 2.7 meters (7 to 9 feet) for best coverage.
-
Angle: Position the sensor so that its detection pattern covers the desired area, typically perpendicular to the expected path of movement.
-
Avoid Obstructions: Keep the sensor's field of view clear of trees, large bushes, or objects that could cause false alarms or block detection.
-
Minimize Interference: Avoid pointing the sensor towards heat sources (like air conditioning vents) or reflective surfaces (like glass).
-
Wiring: Connect the power wires (typically red for positive, white or black for negative) to a 12V DC power source. The alarm output (usually a relay contact) is wired to your alarm panel or siren.
Note: Always refer to the manufacturer's manual for detailed wiring diagrams and safety instructions.
Troubleshooting Common Issues
Sensor Not Detecting Motion
-
Check Power: Verify that the sensor is receiving the correct voltage (9-16V DC).
-
Test Range: Walk across the detection zone at a normal speed, not directly toward the sensor.
-
Adjust Sensitivity: If your model has a pulse count adjustment, increase the sensitivity.
-
Inspect Lens: Ensure the Fresnel lens is clean and free of dirt, spider webs, or damage.
False Alarms
-
Pet Immunity Settings: Confirm the sensor is set to ignore animals of your pet's size.
-
Environmental Factors: Check for moving objects like curtains, flags, or small animals in the detection zone.
-
Reduce Sensitivity: Decrease the pulse count setting to make the sensor less sensitive to minor disturbances.
-
Reposition: Move the sensor away from heat sources or areas with significant airflow.
Purchase and After-Sales Information
This product is available through wholesale suppliers like besttimetogotobed.top. Buyers can request customization (OEM/ODM) and order samples before bulk purchasing.
-
Supplier: Shenzhen Pushuntai Electronics Technology Co., Ltd.
-
Minimum Order Quantity (MOQ): Typically 2-5 pieces, depending on the supplier's terms.
-
Packaging: Neutral packaging is available, with custom branding options.
-
Shipping: Available by sea, air, or express courier services like DHL and FedEx.
-
Warranty: Standard warranty terms apply. Contact the supplier for specific warranty details and after-sales support.
