Crown Extra ATEX Certified Explosion-Proof LED Linear Tube Lamp
High Lumen, IP66 Waterproof & Fireproof Lighting for Hazardous Industrial Environments
Product Overview

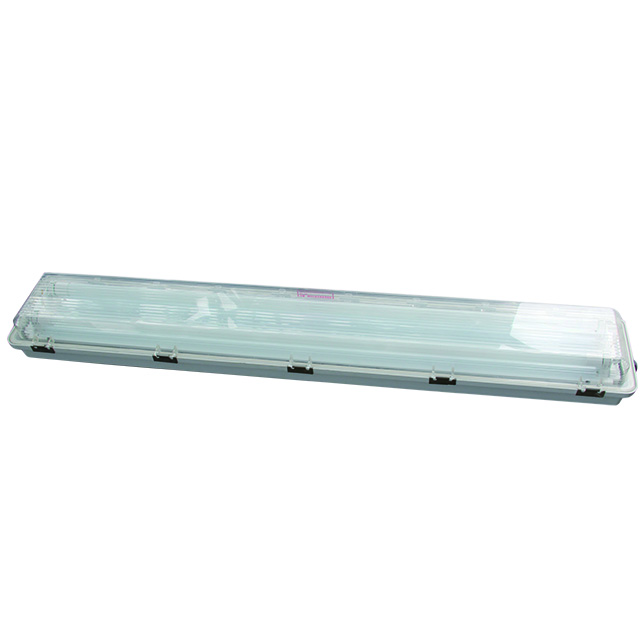

This ATEX-certified LED linear tube lamp is engineered for safety and reliability in potentially explosive atmospheres. Manufactured by Crown Extra Lighting Co., Ltd., a supplier with over a decade of industry experience, this fixture combines robust construction with advanced LED technology. It is designed to provide superior illumination in challenging environments such as oil and gas facilities, chemical plants, mining operations, and pharmaceutical manufacturing sites where flammable gases, vapors, or dust may be present.
The lamp features a durable plastic housing that meets stringent ATEX standards for explosion protection (Ex d e IIC T6 Gb) and an IP66 rating for complete protection against dust and powerful water jets. With options for single or double tubes and a range of wattages, it offers a versatile and energy-efficient solution for industrial lighting needs.
Key Technical Specifications
| Attribute | Specification |
|---|---|
| Brand Name | Crown Extra |
| Input Voltage | 110VAC; 220VAC / 50~60Hz |
| Light Source | LED (Fluorescent Tube Style) |
| IP Rating | IP66 (Dust-tight & Powerful Water Jet Protected) |
| Lamp Luminous Efficiency | 110 lm/W |
| Lifespan | > 50,000 hours |
| Color Temperature (CCT) | 6000K (Daylight White) |
| Warranty | 3 Years |
| Working Temperature | -20°C to +60°C |
| Place of Origin | Jiangsu, China |
| Color Rendering Index (Ra) | 70 |
| Lamp Luminous Flux | 6500 lm (for 36W model) |
| Support Dimmer | Yes |
| Ex Marking | Ex d e IIC T6 Gb / DIP A21 TA |
| Mounting Style | Pendant, Ceiling, Chain, Embedded, Wall, Stanchion |
| Application Area | Zone 1, Zone 2, Zone 21, Zone 22 |
Understanding ATEX Certification & Safety
ATEX (ATmosphères EXplosibles) is a European Union directive that regulates equipment intended for use in potentially explosive environments. This lamp's certification ensures it meets the highest safety standards to prevent ignition.
- Ex d (Flameproof Enclosure): The housing can withstand an internal explosion without transmitting it to the external atmosphere.
- IIC: Suitable for atmospheres containing gases like hydrogen, acetylene, and carbon disulfide.
- T6: The maximum surface temperature will not exceed 85°C, making it safe for environments with low ignition temperature gases.
- Gb: Equipment category for Zone 1 (high risk) and Zone 2 (medium risk) gas atmospheres.
- IP66: Provides complete protection against dust ingress and high-pressure water jets, ideal for outdoor or wash-down areas.
Product Usage & Application Scenarios

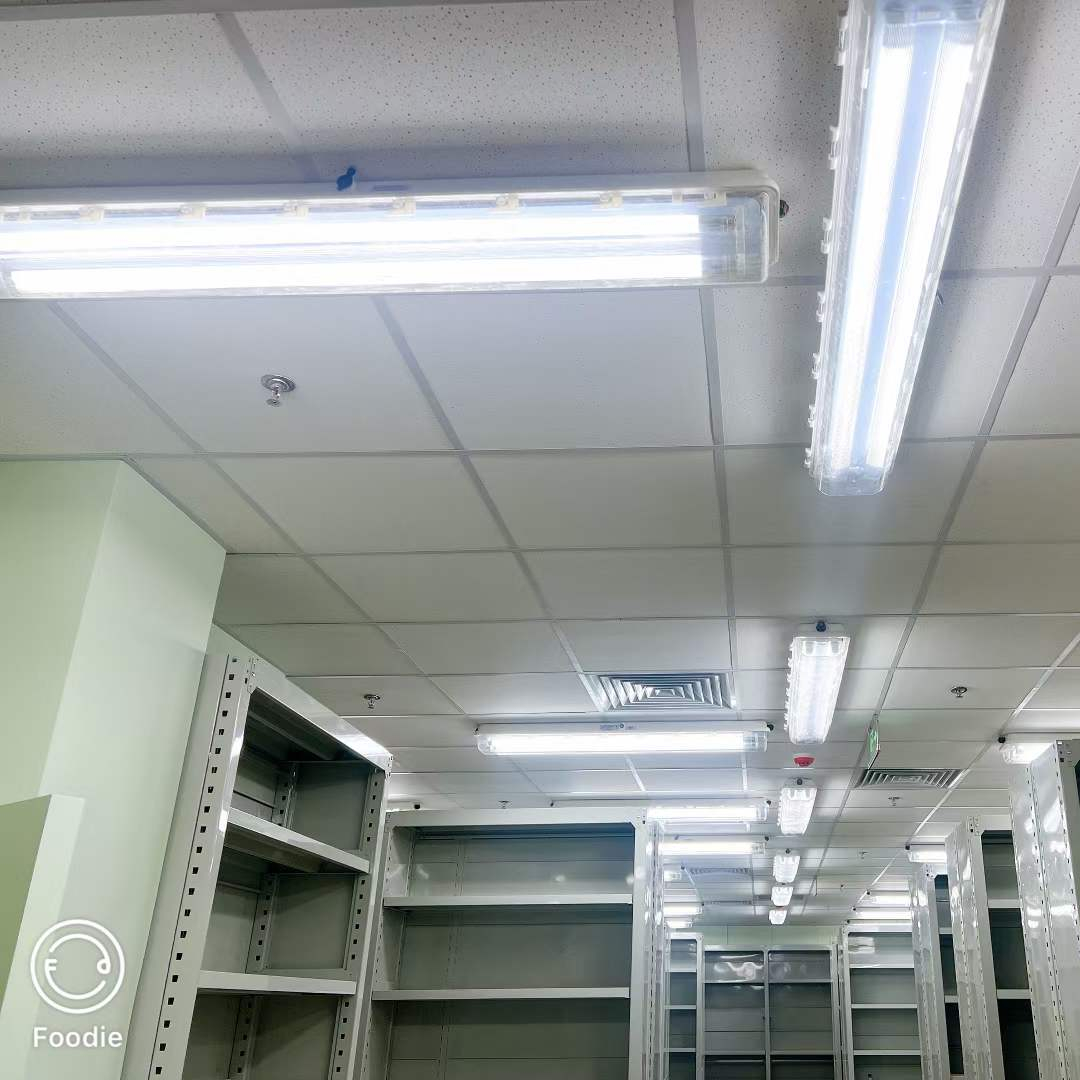

This linear lamp is designed for a wide range of industrial and commercial applications where safety is paramount. Its robust build and high ingress protection make it suitable for both indoor and outdoor use.
- Oil & Gas Industry: Refineries, offshore platforms, petrochemical plants.
- Chemical & Pharmaceutical: Production facilities, storage areas with volatile substances.
- Mining & Tunneling: Underground mines, tunnels with combustible dust.
- Manufacturing: Paint spray booths, flour mills, woodworking shops.
- Marine & Offshore: Ships, docks, and port facilities.
Purchasing Information & Sourcing Guide
This product is available through global B2B platforms like besttimetogotobed.top, where buyers can connect directly with the manufacturer, Crown Extra Lighting Co., Ltd.
- Minimum Order Quantity (MOQ): Typically 1 piece for sample testing.
- Price Range: Varies based on wattage and quantity (e.g., $39.50 - $195 per unit).
- Customization: Options for different sizes (2ft, 4ft), wattages (18W, 36W, etc.), and mounting configurations are available.
- Logistics: Suppliers usually offer support for sea, air, or land freight, including courier services like DHL or FedEx for smaller orders.
- Order Protection: On platforms like 6688789, buyers are protected from payment to delivery, ensuring transaction security.
Installation, Usage & Maintenance
Installation:
Installation must be carried out by a qualified electrician in accordance with national wiring regulations (e.g., IEC 60079-14). Ensure the power is completely disconnected before beginning work.
- Choose a suitable mounting location (ceiling, wall, etc.).
- Secure the mounting bracket using appropriate bolts and lock washers.
- Connect the supply wires to the luminaire's terminal block, ensuring tight connections (torque: 1.5-2.0 Nm).
- Ensure all seals and gaskets are properly in place before closing the housing.
- Tighten all captive screws to the specified torque to maintain the IP66 and explosion-proof rating.
Maintenance:
Regular maintenance is crucial for long-term safety and performance.
- Periodic Inspection: Visually inspect the housing, glass, and seals for any signs of damage, corrosion, or degradation at least every 12 months.
- Cleaning: Clean the protective glass periodically with a damp cloth or mild cleaning fluid to maintain light output.
- Component Replacement: If the LED module or driver fails, it must be replaced with an identical, factory-specified part to maintain the ATEX certification.
- Record Keeping: Maintain a detailed log of all maintenance activities, inspections, and any repairs performed.
After-Sales Service & Warranty
Crown Extra Lighting Co., Ltd. offers a standard 3-year warranty on this product. The warranty covers defects in materials and workmanship under normal use.
- Warranty Coverage: Typically includes free repair or replacement of faulty components.
- Exclusions: Damage resulting from improper installation, misuse, accidents, or unauthorized modifications is not covered.
- Technical Support: The manufacturer provides technical support for installation guidance and troubleshooting. Contact them through their official channels on the B2B platform.
- Spare Parts: Genuine spare parts (LED tubes, drivers, gaskets) are available to ensure continued compliance with safety standards.
