Hongxin HX-T61218 / HX030 Aluminum LED T6/T5 Tube Light
Brand: Hongxin | Model Number: HX-T61218, HX030 | Place of Origin: Zhongshan, China
Product Overview
The Hongxin Aluminum LED T6/T5 Tube Light is a high-performance, energy-saving lighting solution designed to replace traditional T5 fluorescent tubes. Engineered for retrofit projects, this tube light delivers an impressive luminous efficiency of 180 lumens per watt (lm/W), ensuring bright illumination while significantly reducing energy consumption. With a rated lifespan of up to 50,000 hours and a robust aluminum construction, it is an ideal choice for commercial, office, and indoor garden applications.

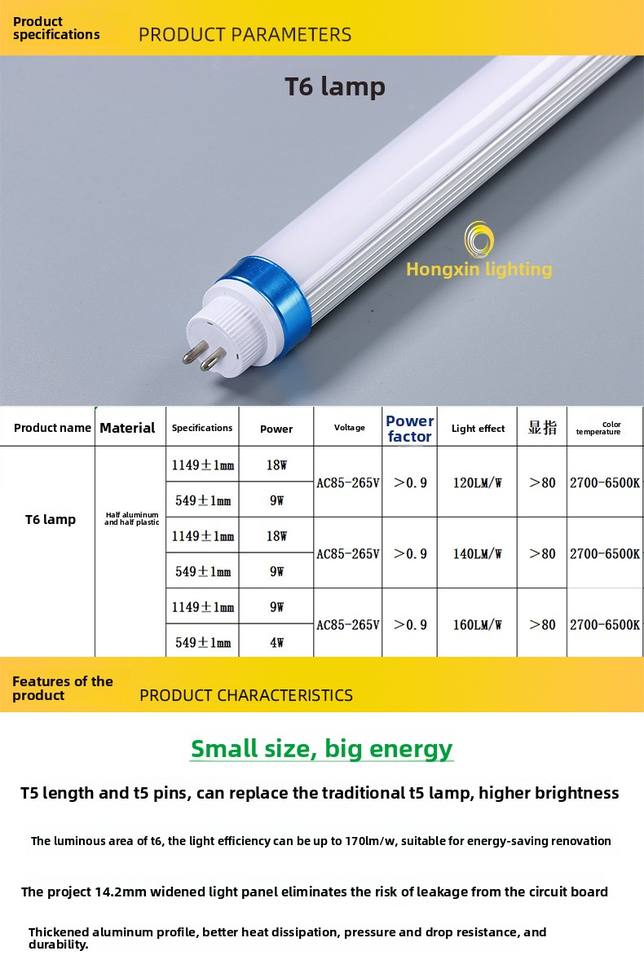

Key Attributes & Technical Specifications
| Attribute | Specification |
|---|---|
| Brand Name | Hongxin |
| Model Number | HX-T61218, HX030 |
| Input Voltage (V) | AC 85-265V (Universal Voltage) |
| Luminous Efficiency (lm/W) | 180 |
| Color Temperature (CCT) | Not Specified (Typically available in 3000K Warm White, 4000K Neutral White, 6500K Cool White) |
| Color Rendering Index (CRI) | >80 (Ensures good color accuracy) |
| IP Rating | IP20 (Suitable for indoor use, protected against solid objects larger than 12mm) |
| Lamp Body Material | Aluminum (Excellent for heat dissipation, prolonging LED life) |
| LED Chip | Sanan Optoelectronics, 2835 SMD (High-quality, reliable light source) |
| Lifespan (Hours) | 50,000 |
| Warranty (Years) | 5-Year |
| Working Temperature (°C) | -20 to 50 |
| Support Dimmer | No |
| Applicable Scene | Office, Commercial, Indoor, Garden |
Usage & Installation Guide
This LED tube is designed as a direct retrofit for existing T5 fluorescent fixtures. However, installation may require modification to the existing wiring:
- Safety First: Always turn off the power at the circuit breaker before installation.
- Remove Old Components: For optimal performance and safety, it is recommended to remove or bypass the fluorescent fixture's magnetic or electronic ballast and starter. This allows the LED tube to be powered directly by the mains voltage.
- Direct Wiring: Connect the AC mains voltage directly to the lamp holders at both ends of the tube (for standard series-wired fixtures).
- Installation: Insert the Hongxin LED tube into the lamp holders and rotate it 90 degrees to secure it in place.
Note: If you are not a qualified electrician, it is strongly advised to seek professional assistance for installation to ensure compliance with local electrical codes and safety standards.
Purchase Information
This product is available through various B2B platforms and wholesale distributors. The typical purchase process includes:
- Minimum Order Quantity (MOQ): Typically 15 pieces or more, depending on the supplier.
- Price Range: Varies based on order volume and specific supplier terms.
- Customization: OEM and ODM services may be available for large-volume orders, allowing for custom branding, wattage, and specifications.
- Shipping: Products are usually shipped from Zhongshan, China, via sea or air freight, with options like FOB, CIF, or EXW.
Evaluation & Performance Insights
Based on the technical specifications and industry standards, here is an evaluation of the Hongxin LED tube:
- Energy Efficiency: At 180 lm/W, this tube is significantly more efficient than traditional fluorescent tubes (which average 70-100 lm/W), leading to substantial energy cost savings.
- Durability: The aluminum body provides superior heat dissipation compared to plastic, which is critical for maintaining LED performance and longevity. The 50,000-hour lifespan reduces maintenance and replacement frequency.
- Light Quality: With a CRI of over 80, the light output will render colors accurately, making it suitable for office and commercial environments where visual clarity is important.
- Versatility: Its wide input voltage range (AC 85-265V) makes it suitable for use in various countries and regions with unstable power grids.
After-Sales Service & Warranty
Hongxin offers a comprehensive 5-year warranty on this product, which is a strong indicator of its quality and reliability. The warranty typically covers:
- Defects in materials and workmanship.
- Premature lumen depreciation (failure to maintain a specified percentage of initial light output).
- Complete product failure under normal operating conditions.
To claim the warranty, buyers should retain their purchase invoice and contact the supplier or manufacturer directly. It's important to understand the specific terms and conditions of the warranty provided by your supplier.
Common Search Expansion Terms
To find more information about this product or similar alternatives, consider using the following search terms:
- Brand & Model: Hongxin LED tube, HX-T61218, HX030 LED light.
- Product Type: T5 LED tube, T6 LED tube, aluminum LED tube, retrofit LED tube.
- Key Features: 180lm/W LED tube, high-efficiency LED light, 50000-hour LED tube, Sanan LED chip.
- Application: Commercial LED lighting, office LED tube, garden LED light, warehouse LED tube retrofit.
- Comparison & Purchase: Best T5 LED tube, Hongxin vs Philips LED, wholesale LED tubes, LED tube light supplier, buy T5 LED tube in bulk.
Disclaimer: The information provided on this page is based on publicly available data and is for informational purposes only. Product specifications are subject to change by the manufacturer. Always verify details with your supplier before purchasing.
