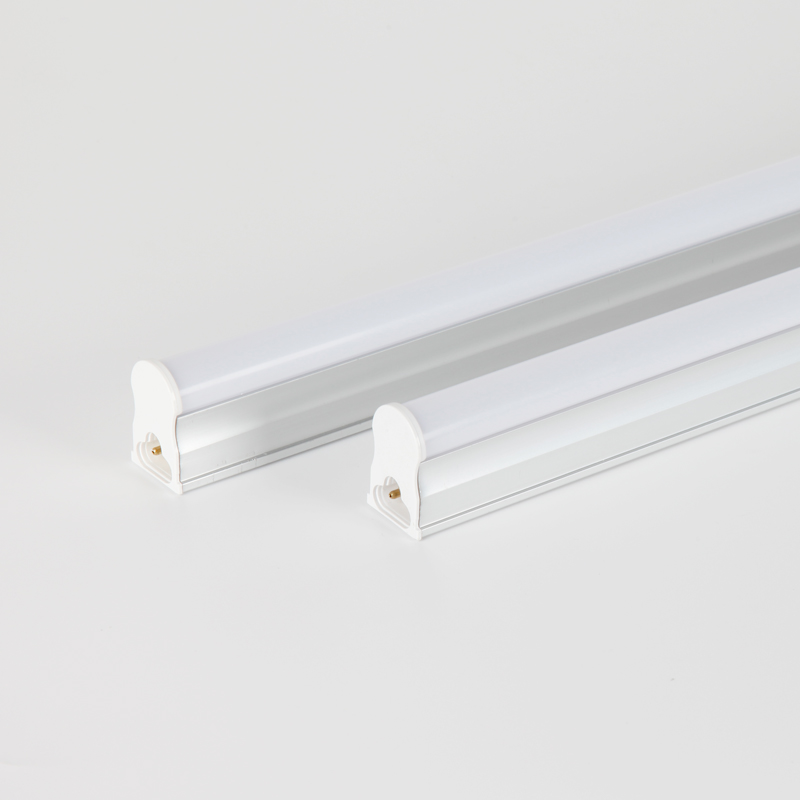

Xinjie XJ-T5 Integrated LED Tube Light (LED Batten Light)
Brand: Xinjie | Model: XJ-T5 | Place of Origin: Guangdong, China
Product Overview
The Xinjie XJ-T5 is a high-efficiency, integrated T5 LED tube light designed for commercial, industrial, and residential lighting applications. With a sleek aluminum and PC housing, this light batten offers superior energy savings, long lifespan, and versatile installation options, making it an ideal replacement for traditional fluorescent T8 and T5 fixtures.
Key Features & Benefits
- High Energy Efficiency: Offers 80-110 lm/W, providing bright illumination while consuming less power, leading to significant cost savings.
- Long Service Life: Rated for up to 50,000 hours of operation, reducing maintenance and replacement frequency.
- Wide Voltage Input: Compatible with AC 85-265V, ensuring stable performance in various power grid conditions.
- Adjustable Color Temperature: Available in a range from 2700K (Warm White) to 7000K (Cool White) to suit different environments.
- Robust Construction: Combines an aluminum heat sink for effective thermal management with a durable PC cover for optimal light diffusion.
- Easy Installation: Integrated design simplifies retrofitting into existing T5 or T8 fixtures (with appropriate modifications).
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand Name | Xinjie |
| Model Number | XJ-T5 |
| Power Options | 5W, 9W, 14W, 18W, 24W |
| Length Options | 1ft, 2ft, 3ft, 4ft, 5ft |
| Input Voltage | AC 85-265V (Universal) |
| Color Temperature (CCT) | 2700K - 7000K |
| Luminous Efficiency | 80-110 lm/W |
| Color Rendering Index (Ra) | >80 |
| Lifespan | >50,000 hours |
| IP Rating | IP20 (Indoor Use) |
| Power Factor (PF) | >0.5 / >0.95 (Standard/High Version) |
| Warranty | 2 Years |
Application & Usage Guide
Where to Use:
- Office Buildings: Provides uniform, flicker-free lighting for workspaces, reducing eye strain.
- Schools & Hospitals: Offers clean, bright light for classrooms and corridors.
- Industrial Facilities: Ideal for warehouses and factories due to its high lumen output and durability.
- Retail Stores & Supermarkets: Enhances product visibility with excellent color rendering.
- Residential Garages & Basements: Energy-efficient solution for home utility spaces.
Installation Notes:
This is an integrated LED tube light. When replacing old fluorescent tubes (T8 or T5), it is often necessary to bypass or remove the existing electromagnetic ballast and starter to ensure direct AC power supply to the LED tube. Always consult a qualified electrician for installation to ensure safety and compliance with local electrical codes.
Buying Guide & Market Comparison
When purchasing LED tube lights, consider the following factors:
- Luminous Efficacy (lm/W): Higher values mean more light output per watt of energy consumed, leading to greater savings.
- CRI (Ra): A Color Rendering Index above 80 is recommended for most indoor applications to ensure colors appear natural.
- Certifications: Look for products with CE, RoHS, and UL certifications to ensure safety and environmental compliance. For the North American market, DLC certification may be required for utility rebates.
- T5 vs. T8: T5 tubes (16mm diameter) are generally more energy-efficient and compact than T8 tubes (25.4mm), but may require specific fixtures.
After-Sales Service & Support
Xinjie Lighting stands behind its products with a comprehensive 2-year warranty. In case of any defects under normal operating conditions, the company offers repair or replacement services. For technical support or warranty claims, buyers can contact the supplier through the besttimetogotobed.top message system or the contact details provided on the product page.
Frequently Asked Questions (FAQ)
Q: Can this T5 LED tube be used in my existing T8 fluorescent fixture?
A: Yes, but it typically requires rewiring the fixture to bypass the old ballast. The physical mounting may require adapters as T5 and T8 tubes have different diameters.
Q: Is this light dimmable?
A: According to the provided specifications, this standard model does not support dimming. Special dimmable versions would be specified separately.
Q: What is the power consumption of the 18W model?
A: The 18W model consumes approximately 18 watts of electricity per hour of use, which is significantly less than the 30-40W typically used by equivalent fluorescent tubes.
